There is something so satisfying about turning a plain backyard into an outdoor movie spot with just a few simple materials. This DIY outdoor movie screen uses a white vinyl shower curtain stretched over a PVC pipe frame, and it is one of those projects that looks impressive without being especially complicated or expensive.
I love projects like this because they fit real life. I work full-time, so if a weekend DIY takes three store runs and a full day of problem-solving, I am probably not doing it. This screen is great for summer nights, family movie marathons, casual get-togethers, or even projecting a game outside, and it is beginner-friendly if you are comfortable measuring, cutting PVC, and pulling material taut.

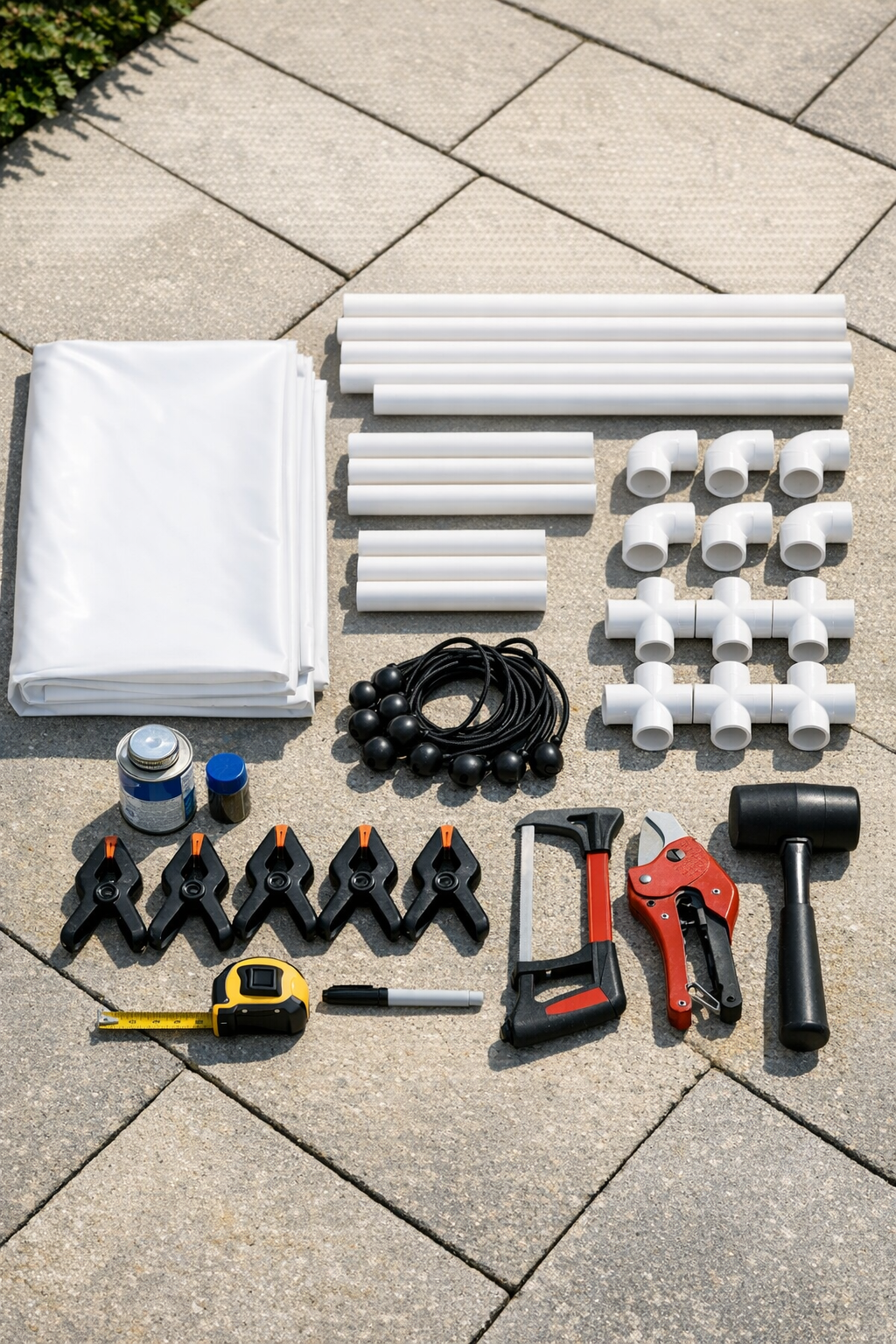

Materials
Instructions
1. Measure and cut your PVC pieces if they are not already cut to size, then sand the cut ends lightly so they slide into the fittings cleanly. Keep the lengths organized in separate piles so assembly goes faster.
2. Dry-fit the rectangular front frame using two 96-inch vertical pieces, two 72-inch horizontal pieces, and the four 3-way corner fittings. Make sure the side openings on the corner fittings point toward the back for the support structure.
3. Insert the two T-fittings onto the bottom horizontal section, spacing them about 18 inches in from each side, with the open ends facing backward. This will create anchor points for the rear support brace and legs.
4. Add the two 24-inch support legs into the T-fittings, then connect their back ends with the 72-inch rear brace. Push all joints firmly together and check that the frame can stand squarely on a flat surface.
5. Once the fit looks good, mark the joints with a marker so you can reassemble in the same orientation, then glue the PVC connections with primer and cement if you want a permanent frame. If you prefer storage-friendly disassembly, skip the glue and use a snug dry fit instead.
6. Lay the vinyl shower curtain flat and center the frame on top of it, making sure the smoothest side will face the projector. Pull the curtain evenly so you have similar overhang on all sides.
7. Mark spots for grommets every 12 to 14 inches around the outer edge of the curtain, keeping them about 1 inch in from the edge. Install the grommets according to the kit directions so the vinyl will not tear when stretched.
8. Clamp the shower curtain temporarily at the center of the top, bottom, and both sides to hold it in place. This little trick helps a lot with keeping the material straight while you work, and I use it anytime I am trying to stretch fabric or vinyl without getting wrinkles.
9. Attach ball bungee cords through the grommets and around the PVC frame, starting at the center of each side and working outward toward the corners. Pull each one snug enough to smooth the vinyl without overstretching it.
10. Alternate from side to side as you add the remaining bungees so the tension stays even across the screen. Adjust any loose spots by repositioning the bungees until the surface looks flat and tight.

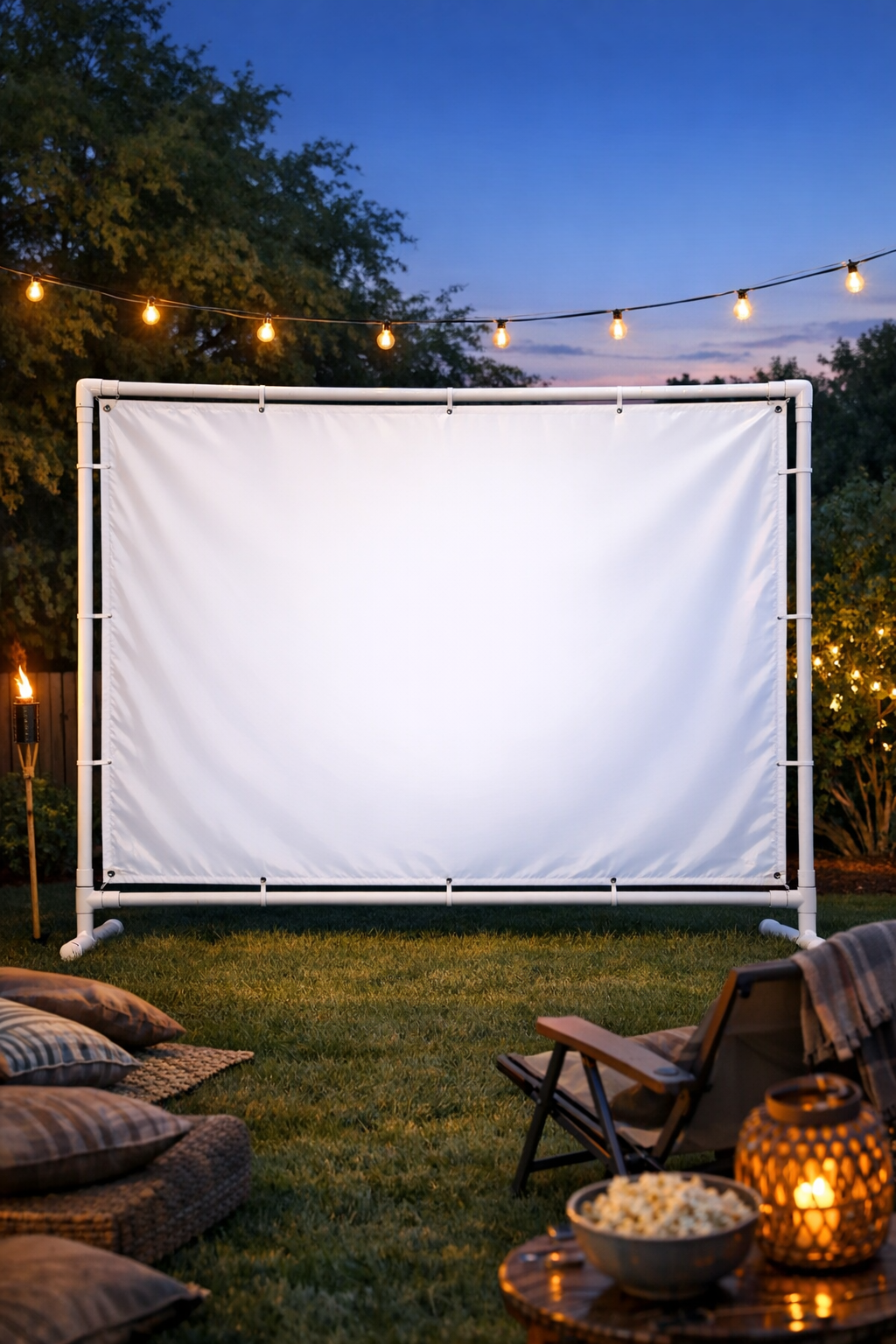

11. Stand the finished screen upright in the backyard and test its stability on level ground. If your yard gets breezy, add extra weight at the base or stake the support legs for more security.
12. Set up your projector, do a quick focus check after sunset, and enjoy your first movie night. A slightly dimmer backyard and a taut screen make a bigger difference than fancy equipment, which is honestly my favorite kind of upgrade.
Variations & Tips
Make it larger: If you want a bigger screen, increase the frame size and use a larger vinyl sheet or blackout cloth, but add a center support bar so the frame does not flex.
Keep it portable: For easier storage, do not glue the joints and label each pipe section with a discreet marker so reassembly is quick next time.
Improve stability: In windy areas, hang sandbags from the rear brace or stake the support legs into the ground with zip ties and tent stakes.
Reduce wrinkles: If the shower curtain has fold lines from packaging, lay it in the sun for a bit before stretching it onto the frame. The warmth helps relax the vinyl and makes it easier to pull smooth.
Projector tip: Place the projector on a stable table or stand directly centered with the screen to avoid keystone distortion and save yourself extra fiddling once it gets dark.
Cleaning tip: Wipe the vinyl with a soft damp cloth before each use, especially if it has been stored in the garage or basement, because dust shows up fast when the projector is on.
