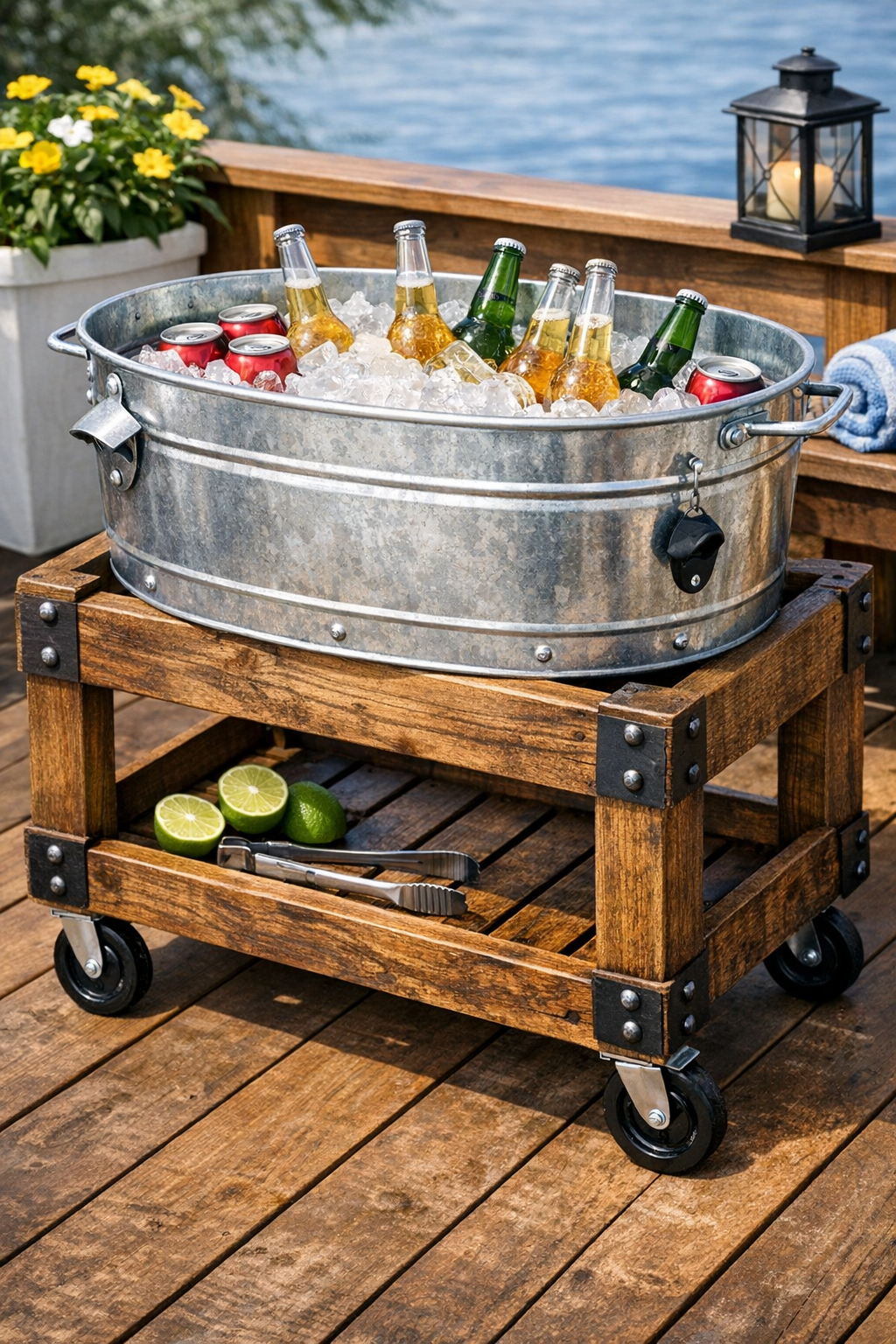

There’s something about a backyard gathering in summer that takes me right back to church picnics, family reunions, and those long Midwestern evenings when nobody wanted to go inside. This outdoor cooler cart is one of those practical little builds that feels old-fashioned in the best way: a galvanized tub tucked into a wooden crate, set on sturdy caster wheels so you can roll cold drinks right where folks are sitting.
I like this project because it looks charming without being fussy, and it’s simple enough for a confident beginner if you can measure, drill, and tighten bolts. If you’ve been wanting a deck or patio piece that’s useful, sturdy, and has a bit of vintage character, this is a mighty satisfying one to make.

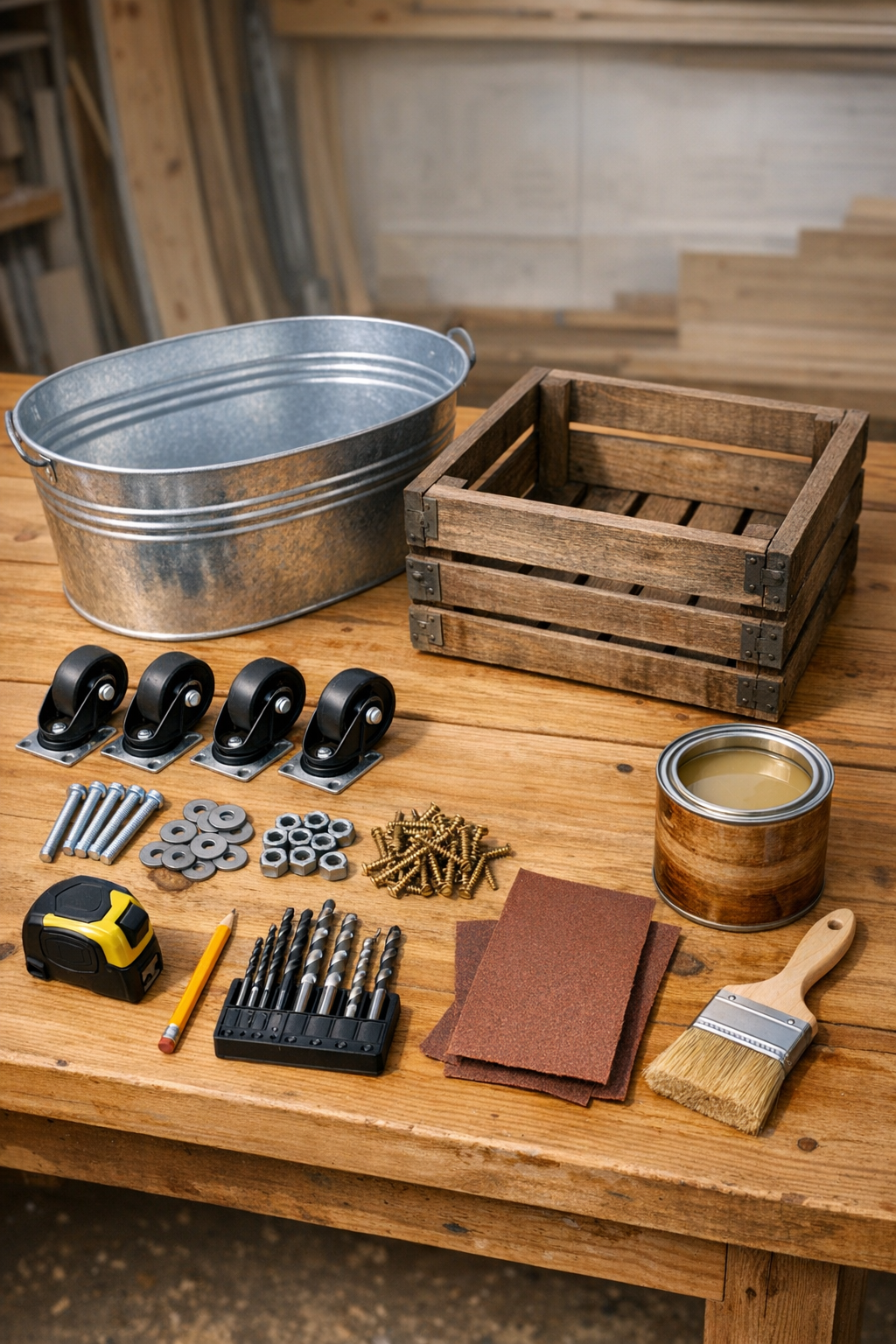

Materials
Instructions
1. Set the galvanized tub inside the wooden crate and check the fit. You want the tub to sit snugly with its rim supported near the top edge of the crate and enough space below for the tub body to hang down.
2. If the crate bottom feels thin or flexible, cut and screw in a 1/2-inch plywood reinforcement panel inside the base. This helps the cart carry the weight of ice and drinks without sagging.
3. Sand the crate thoroughly with 120-grit sandpaper first, then smooth it with 220-grit. Pay extra attention to the top edges and corners so there are no splinters when people reach for drinks.
4. Brush on exterior wood sealer or outdoor polyurethane and let it dry fully according to the product directions. I’ve learned over the years that a little patience here saves a lot of weather-worn heartache later.
5. Turn the crate upside down and position the four caster wheels near the corners on the underside. Keep each mounting plate at least 1 inch in from the edges to prevent splitting.
6. Mark the screw holes, pre-drill small pilot holes, and fasten each caster with four exterior wood screws. Check that all wheels swivel freely and sit flat against the wood.
7. Turn the crate right side up and set the tub in its final position. Use painter’s tape and a pencil to mark two bolt locations on each long side where the tub meets the crate wall.
8. Remove the tub and drill four holes through the crate at the marked spots. Then carefully drill matching holes through the galvanized tub, going slowly so the metal doesn’t bend.
9. Run a thin bead of exterior silicone around the contact points where the tub rests against the crate. This helps reduce rattling and adds a little weather resistance around the bolt areas.
10. Place the tub back into the crate and insert the bolts from the outside in. Add a washer on each side, thread on the lock nuts, and tighten everything just until snug so the tub is secure but not distorted.
11. Roll the cart gently and test its stability before loading it. If it wobbles, tighten the caster screws and make sure the tub is seated evenly in the crate.
12. Fill the tub with ice and drinks, then wheel it out to the deck or patio. It’s a simple build, but it carries that homemade pride that always makes a gathering feel a little more special.
Variations & Tips
Add a drain: If your tub doesn’t already have a drain, you can drill a low hole and install a small outdoor-safe spigot or drain fitting. That makes emptying melted ice much easier than tipping the whole cart.
Choose locking casters: If your deck has any slope at all, use at least two locking caster wheels. I always prefer a cart that stays put when somebody enthusiastic reaches in for a soda.
Stain for a more finished look: You can stain the crate before sealing it if you want a darker, richer finish. Walnut and weathered oak shades both look handsome with galvanized metal.
Use cedar or pressure-treated wood: If you’re building the box from scratch instead of using a ready-made crate, cedar and pressure-treated lumber both hold up well outdoors. Just be sure everything is dry before sealing.
Protect the metal edges: If the drilled holes in the tub feel sharp, smooth them lightly with sandpaper or a metal file before final assembly. That little step makes the project safer and neater.
Keep it covered: Even weather-friendly materials last longer when they’re protected. When summer parties are over, I’d roll this cart under cover or into the garage so it’s ready for the next hot afternoon.
